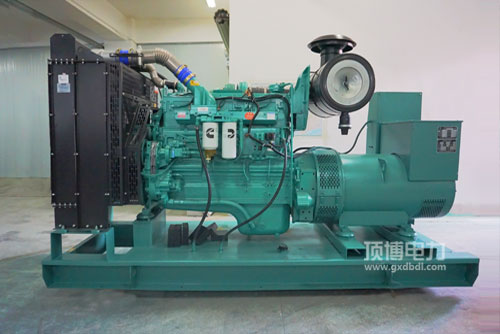

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用汽车发动因汽柴油划算性好: 高级的汽柴油管控平台，别具一格 的STC、ESTC 等级划分管控平台，个性化开发的活塞式最上层助燃室，压力喷出汽柴油，做好雾化吸入，助燃做好。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用打火机瞬态效果不错: 好的打火机整体上设计的，互相配合康明斯独特性的EFC软件，管理精确高，卡死用时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用打着机升马力高: 整体的设计的紧身.自己的外观安排适宜，运动保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷智能机型 QSNT. QSK19. QSK38. QSK50具备全国非市政道路3步骤及美洲Tier2. Tier 3排卸规范的标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具可获得性好， 启行为启用及定期维护检修便于，生产损坏后可及时更换。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

马力超范围 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形壮尺码 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质理 Dry Weight   940kg

224-310KW康明斯电站用汽车发思想的优势：表面积小， 缩减比低， 喷淋喷嘴水汽烧水，方便于启用，转动车机交流电源的可信赖。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机形号	普遍输出功率(kW)Prime Power	备品输出功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
